Residential Photo Requirements Preview
This preview is based on the selected job type(s):
- Tesla Wall Connector / Universal Wall Connector
| Title | Description | File Upload | Required | Example |
|---|---|---|---|---|

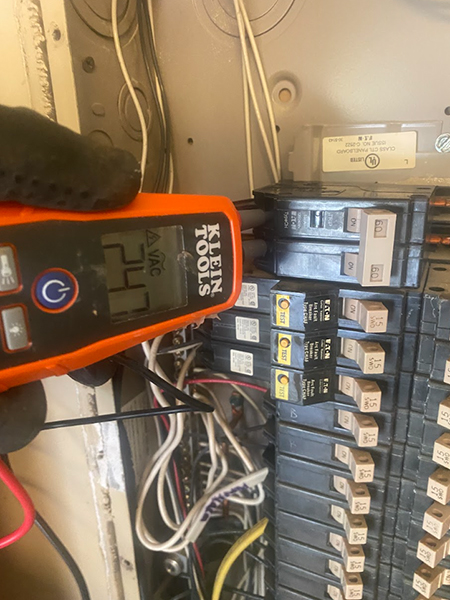

| 1. Voltage (Breaker) | Voltage for L1-L2/ L1-Ground/ L2-Ground at the BREAKER terminals with GLOVES ON | Multi | Yes |
|

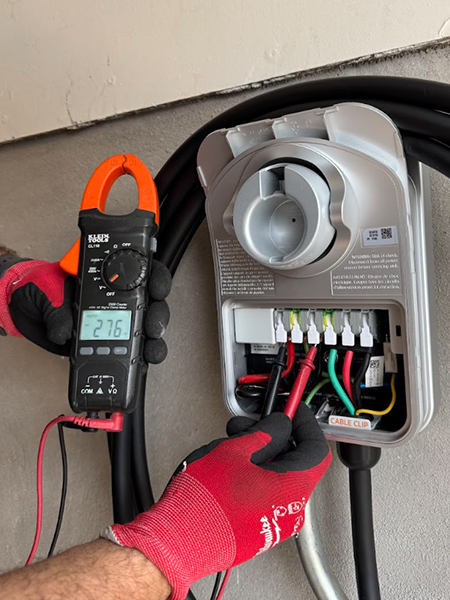

| 2. Voltage (Charger) | Voltage for L1-L2/ L1-Ground/ L2-Ground at the CHARGER terminals with GLOVES ON | Multi | Yes |
|

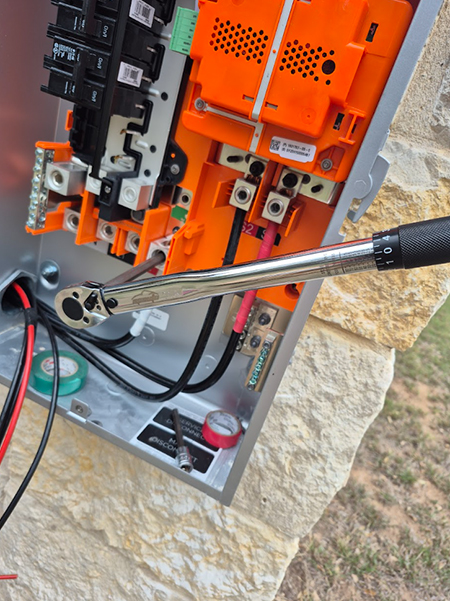

| 3. Torque Screw | Torque Screwdriver/Wrench or Liquid Torque Seal Strip showing Torque setting at the CHARGER + GATEWAY and BREAKER terminals | Multi | Yes |
|

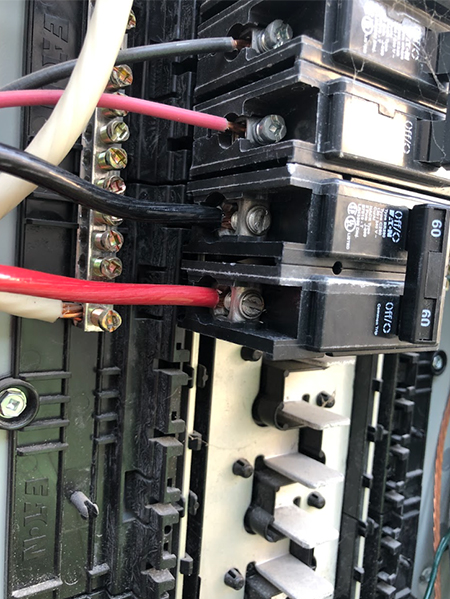

| 4. Panelboard Wiring | Panel WITHOUT Dead Front to show the wire Gauge, NM-B, THHN, Copper, Breaker, Penetrations into the panel | Multi | Yes |
|

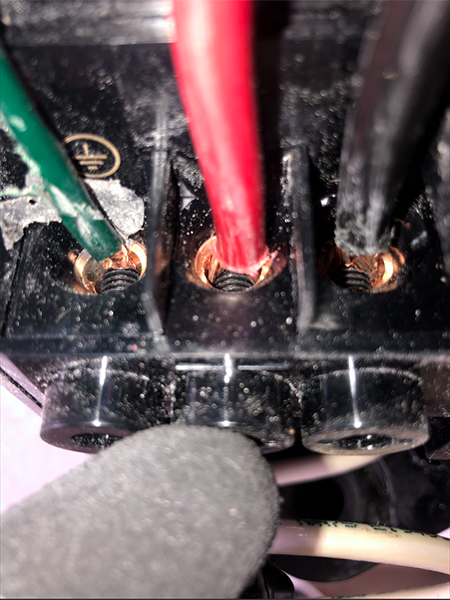

| 5. Charger Wiring | Charger or Bracket without the faceplate, to show proper wiring and settings (L1, L2 + Ground connected) (if applicable) | Multi | Yes |
|

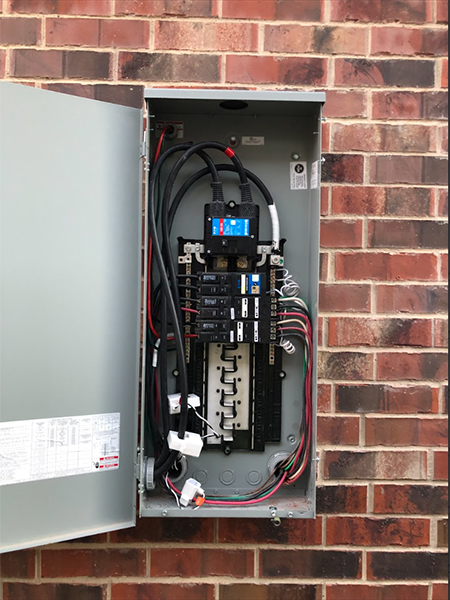

| 6. CTs | Close up w/ AC wiring including CTs / Ferrite Cores connected + App confirmation screenshots (if applicable) | Multi | No |
|

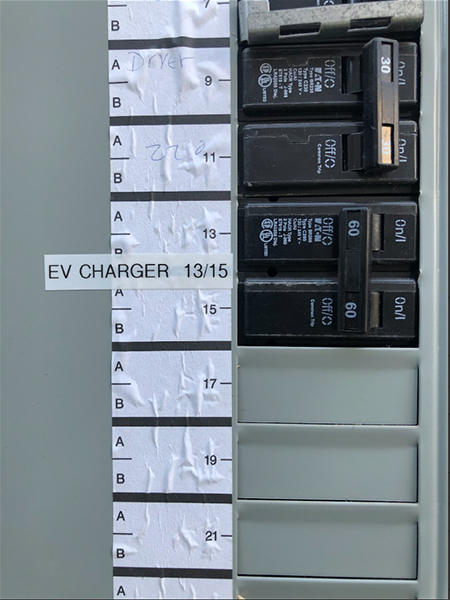

| 7. Label | Panel with Dead Front ON with the Breaker labeled “EV Charger” | Single | Yes |
|
| 8. Conduit | Conduit Run (Enough Photos to clearly understand the route of the full Conduit Run) | Multi | Yes |
|

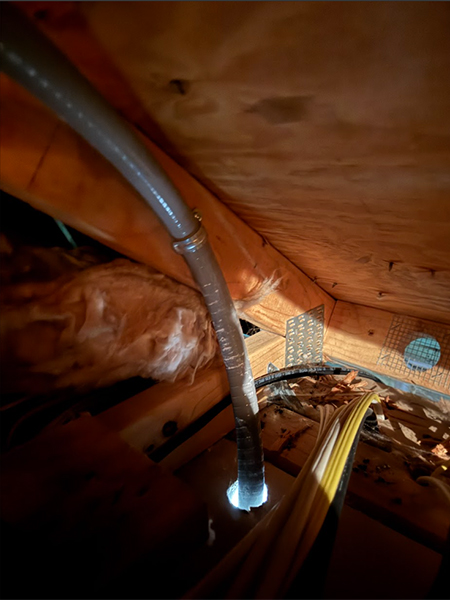

| 9. Attic/Basement | Attic/Basement Run (Enough Photos to clearly understand the route of the full run with straps/staples showing in photos) (if applicable) | Multi | No |
|

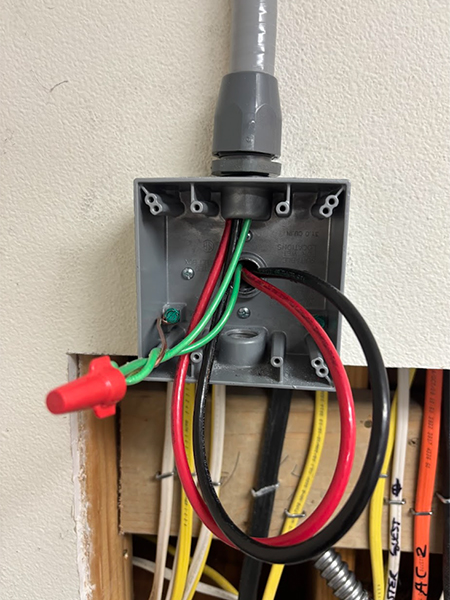

| 10. J-Box | J-box Labels with (Panel / Circuits #s / Voltage) on the Cover Plate and Open to see the joints are made up in the J-box (if applicable) | Multi | No |
|

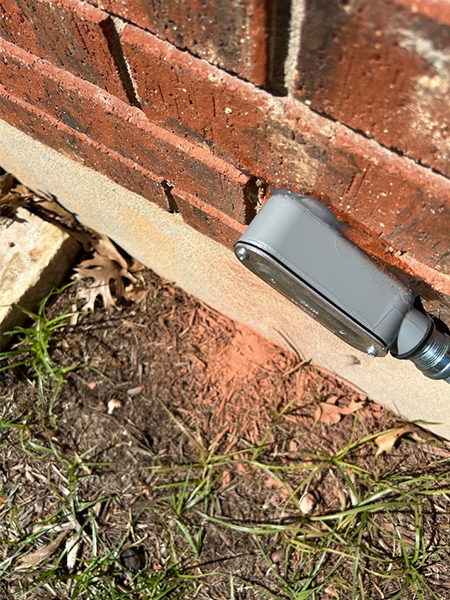

| 11. Weatherseal | Penetrations in the Building that are sealed with the appropriate Sealant to provide weather protection (if applicable) | Multi | No |
|

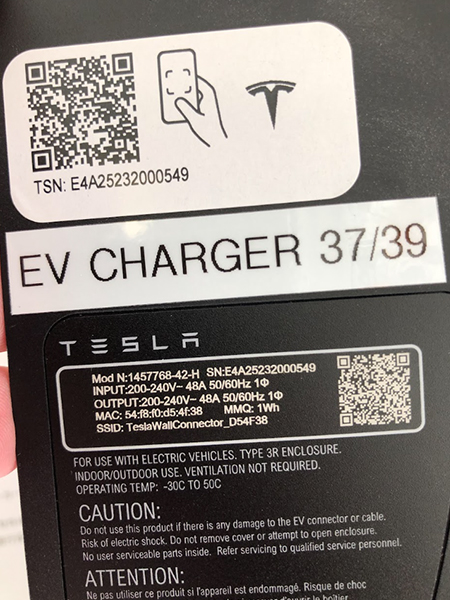

| 12. Serial # | Charger Serial Number (usually on the side/back), capture MAC, Model & Part #s if applicable. | Single | Yes |
|
| 13. Sticker | Smart Charge America "Bug" / Tag Sticker showing "For Service" Contact SCA | Single | No |
|

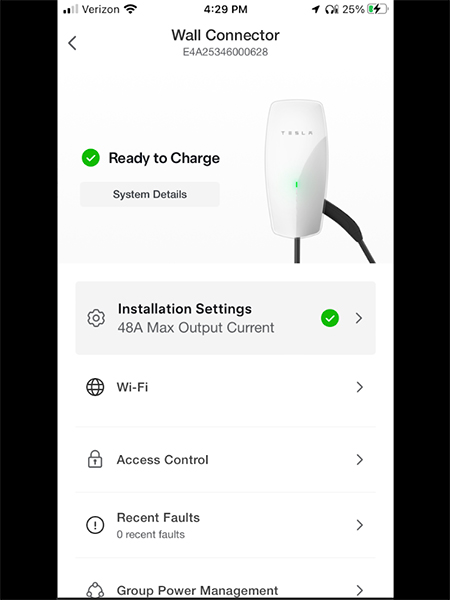

| 14. Commissioning | Commissioning Photos and/or Pamphlet w/ WPA2 password (Screenshot from mobile device where applicable) | Multi | Yes |
|

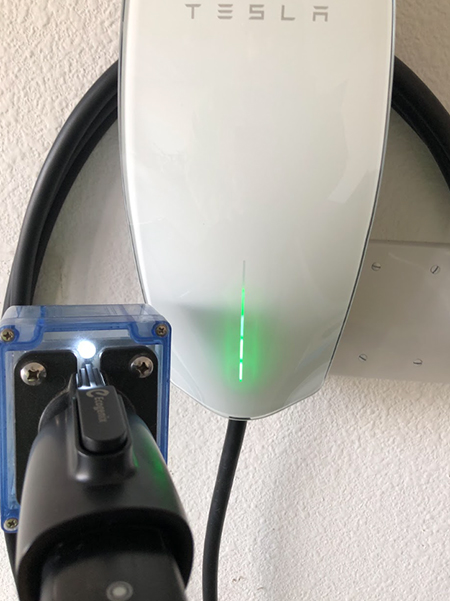

| 15. Test | Charge Simulator (Photos of EVSE or Vehicle plugged into the charger to show that the charger is working properly) TESTING Confirmation Screenshots | Multi | Yes |
|

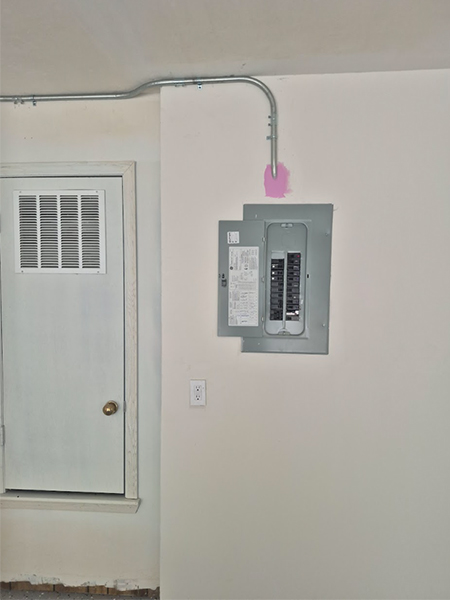

| 16. Drywall | Sheetrock Repair (if applicable) | Multi | No |
|
| 17. Hero | Final photos of the device, final & cleaned site standing 15' back | Single | Yes |
|
